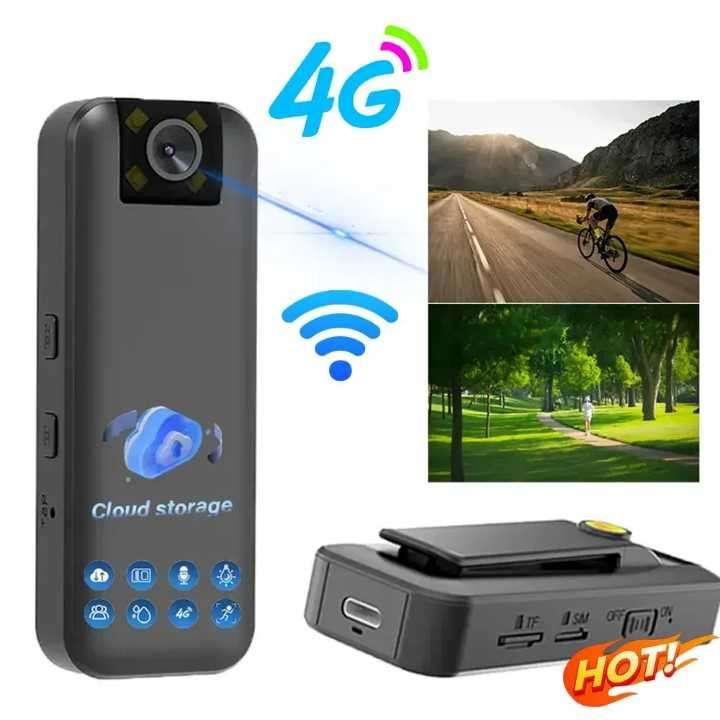

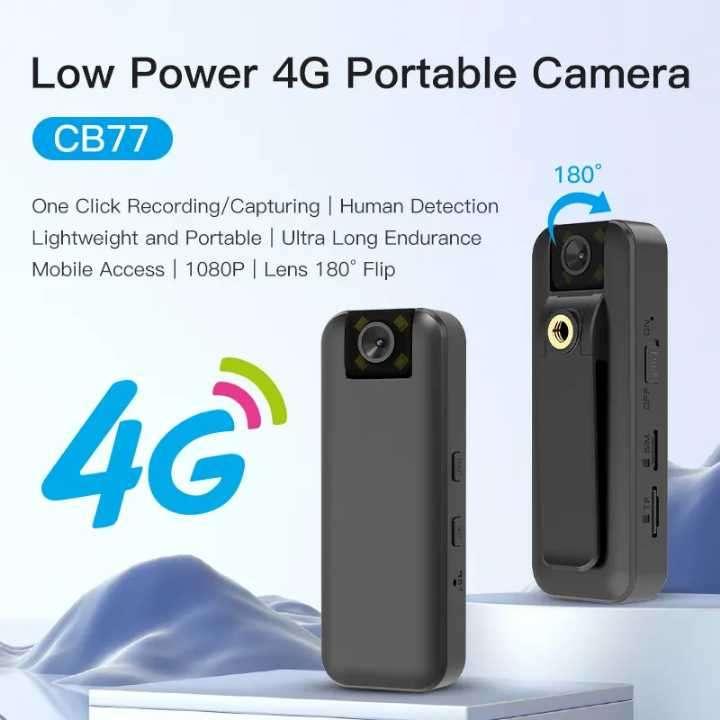

Vstarcam CB77-C 3MP 4G Mini Camera For Video Ultra Long Standby Time Cloud Storage Video Recording

Sorts
Type
Parameters
System
Operating system
Linux
Online visitor
Supports 4 visitors at the same time
APP
O-KAM
Collection
CPU
T31
Memory
8M
Image sensor
GC2083
Minimum illumination
0.5Lux (color mode), 0.1Lux (black & white mode)
Lens
GC2083/1G3P
Viewing angle
Diagonal 129°
Video
Night vision
Dual filter automatic switching, 4*940nm patch infrared lights, irradiation distance: 5 meters
Compression standard
H.264 /MJPEF/JPEG
Multi stream
Main stream:1296P/25fps; Sub stream:360P/25fps
IR control
When the IR night vision function is enabled, IR and ICR are automatically detected; when the IR night vision function is
disabled, IR is off and ICR is fixed in the day vision mode.
Bit rate
CBR/VBR two rate control modes, and the output rate range is 128～4096kbps
Image adjustment
Brightness, contrast, vertical, horizontal adjustable, OSD display
Audio
Input
Built-in-38dB microphone
Sampling frequency/bit width
8KHz/16bit
Compression standard/Bit Rate
G711A
AI
Human detection, human frame
Human detection, filtering invalid video contents
Motion detection
Motion detection, remote alarm events
Area detection
Free smearing, only monitoring the areas concerned by users
Network
4G China
FDD:B1/B3/B5/B7/B8/B28
WCDMA:B1/B5/B8
4G Europe
FDD:B1/B3/B7/B8/B20/B28
WCDMA:B1/B8
Button
Reset
Long press to restore factory setting
Video button
Short press to pause the recording and save
Photo button
Short press 1 time to take photos; Short press 2 time to turn on/off night vision
Power button
Push up to turn on, push down to turn off
Storage
External TF card
TF card (up to 256GB)
Cloud storage
Free loop cloud storage
Physical Indicators
Alarm detection
Motion detection, human detection
Power
DC5V±5%@Type-C interface
Operating condition
Temperature: -10～50℃; Humidity: ＜90%
Weight
（Note: in kind prevail）
Size
Packing list
Camera* 1, manual * 1, Type-C cable
